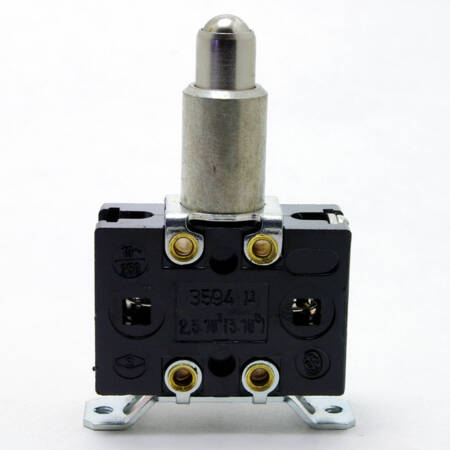

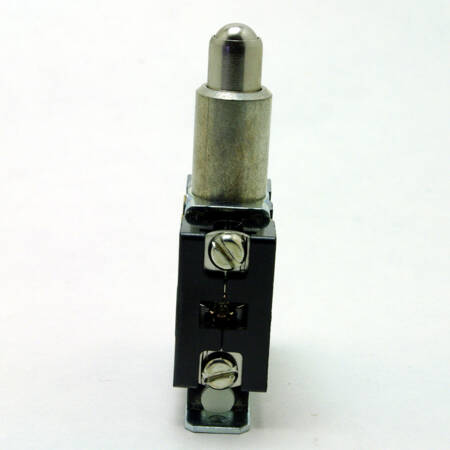

Microswitch - attachment with ball
Packing
1
Switching path (mm)
0,25 max.
Rundown (mm)
4
Run-up (mm)
1,5±1
Controlling force
15 max.

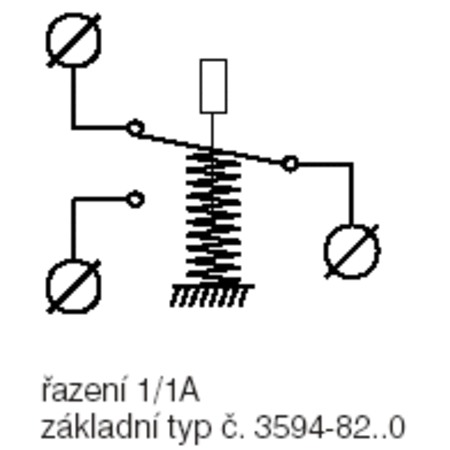

Arrangement
1/1A

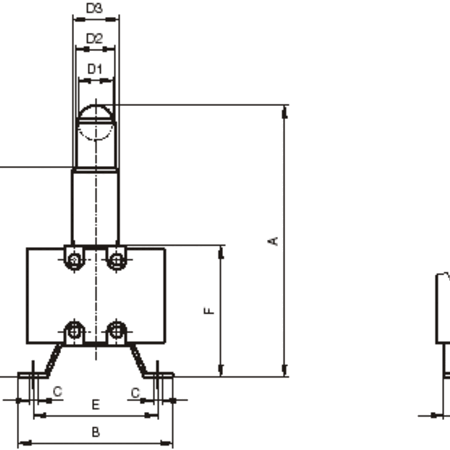

Dimensions (mm)
A = 60 B = 40 C = M 3 D1 = ø 7,14 D2 = ø 8,45 D3 = ø 12 E = 34 ± 0,2 F = 34 G = 50,5 H = 10
